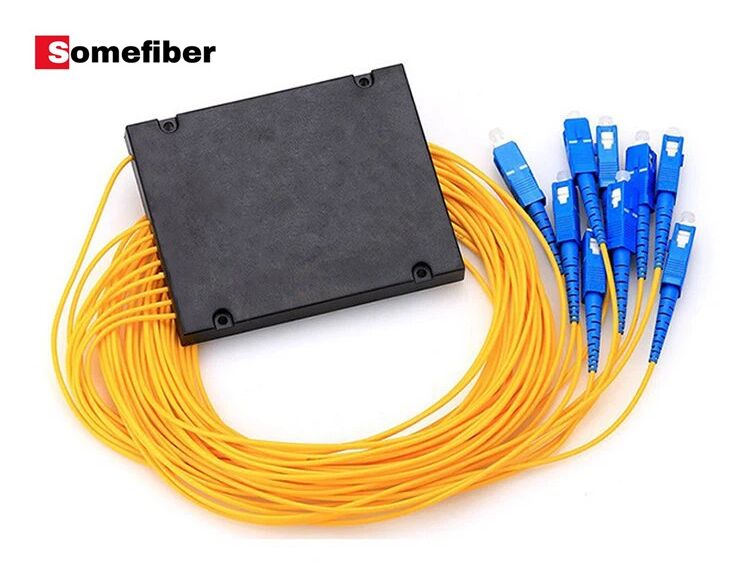

1x8 PLC Splitter ABS BOX 100*80*10 with SC/APC connector
| Place of Origin | China |
| Brand Name | Somefiber |
| Model Number | 1x8-PLC-2.0-1.0-SC/APC |
Features
v Type:1x2,1x4,1x8,1x16,1x32,1x64, 2x2, 2x4,2x8,2x16,2x32,2x64,PLC splitter
v Low IL &PDL
v High reliability good channel-to-channel uniformity
v Wide operating wavelength small size
v Large operating temperature range& Excellent Environmental
Applications
v FTTX (FTTP, FTTH, FTTN, FTTC)
v Local Area Networks (LAN)
v Cable television (CATV ) &Passive Optical Networks (PON)
v Test Equipment
Specifications
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 or customer specified |
||||||
|
Insertion Loss (dB) (S/P Grade) |
|
3.9/3.7 |
7.2/7.0 |
10.2/10.0 |
13.5/13.3 |
16.5/16.3 |
20.5/20.0 |
|
Loss Uniformity (dB) |
|
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) (S/P Grade) |
|
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent Loss(PDL, dB) |
|
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
|
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
|
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 °C)(dB) |
|
0.5 |
0.5 |
0.5 |
0.8 |
1.0 |
1.2 |
|
Operating Temperature (°C) |
-40~+85 |
||||||
|
Storage Temperature (°C) |
-40~+85 |
||||||
|
Mini tube Dimension (0.9mm) (L×W×H) |
40×7×4 |
40×7×4 |
40×7×4 |
60×12×4 |
80x20x6 |
100x40x6 |
|
|
Parameters |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
Fiber Type |
G657A1 |
||||||
|
Insertion Loss (dB) (S/P Grade) |
|
4.5/4.2 |
7.5/7.3 |
10.8/10.5 |
13.8/13.5 |
16.8/16.6 |
20.8/20.3 |
|
Loss Uniformity (dB) |
|
0.5 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) (S/P Grade) |
|
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent Loss(PDL, dB) |
|
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
|
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
|
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 °C)(dB) |
|
0.5 |
0.5 |
0.5 |
0.8 |
1.0 |
1.2 |
|
Operating Temperature (°C) |
-40~+85 |
||||||
|
Storage Temperature (°C) |
-40~+85 |
||||||
|
Mini tube Dimension (0.9mm) (L×W×H) |
40×7×4 |
40×7×4 |
40×7×4 |
60×12×4 |
80x20x6 |
100x40x6 |
|
Note: the IL above is without connector, if with connector, will add 0.3dB insertion loss
